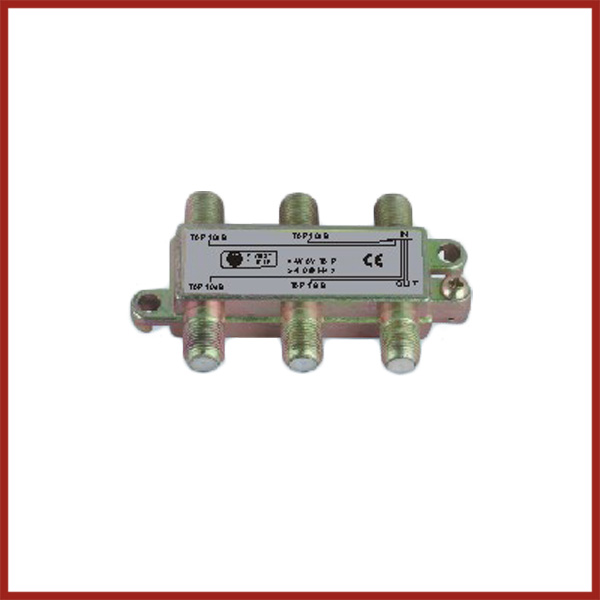

F104
- Categoría：Tipo "F" Tipo 5-1000 / 2500 MHz
- Fecha de lanzamiento：2017-05-17 09:05:01
Descripción detallada
| Specification |
Tap Value (dB) |
Tap-Loss In-tap | Insertion Loss In-Out (Max.dB) | Return Loss In/Out/tap(Min.dB) | Isolation Out-tap/tap-ap(Min.dB) | |||||||
|
5-2150 (MHz) |
2150-245 0(MHz) |
5-47 (MHz) |
47-1000 (MHz) |
1000-2500 (MHz) |
5-47 (MHz) |
47-1000 (MHz) |
1000-2500 (MHz) |
5-47 (MHz) |
47-1000 (MHz) |
1000-2500 (MHz) |
||
| 4-way Tap | 12dB | 12±1.5 | 3.2 | 4.5 | 18/18/18 | 22/22/22 | 17/17/17 | 17/17/17 | 27/28 | 25/28 | 22/25 | 22/25 |
| 16dB | 16±1.5 | 2.0 | 2.5 | 18/18/18 | 22/22/22 | 17/17/17 | 17/17/17 | 26/30 | 26/28 | 25/25 | 25/25 | |
| 20dB | 20±1.5 | 1.0 | 1.5 | 18/18/18 | 22/22/22 | 17/17/17 | 17/17/17 | 35/30 | 32/28 | 25/25 | 25/25 | |
| 24dB | 24±1.5 | 0.8 | 1.0 | 20/20/20 | 20/20/20 | 17/17/17 | 17/17/17 | 45/30 | 35/28 | 30/25 | 30/25 | |
| 30dB | 30±1.5 | 0.8 | 1.0 | 20/20/20 | 20/20/20 | 17/17/17 | 17/17/17 | 48/30 | 40/30 | 35/35 | 35/25 | |
