Home > Products > CATV/MATV/Satellite Splitter (Indoor) > "U"Type 5-1000/2500 MHz Splitter

Loading...

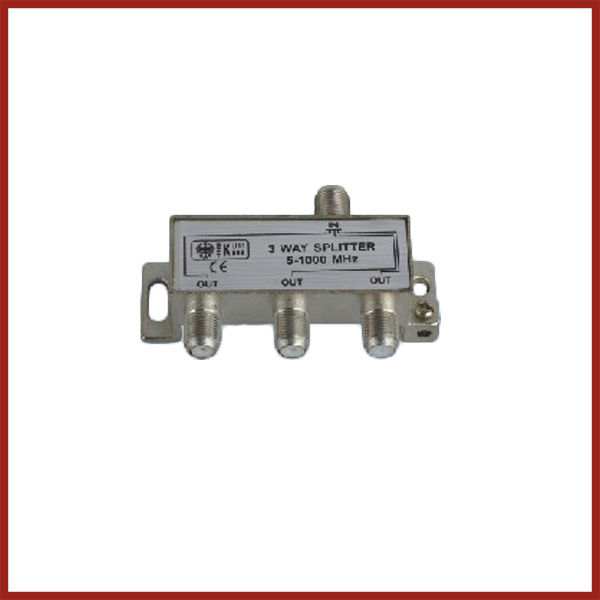

U103




Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB) Return Loss Out (Min.dB) Isolation Out-Out (Min.dB)
3-way Splitter 5-47 3.8/7.2 20 20 20
47-470 3.8/7.3 20 20 21
470-750 4.0/7.8 20 20 20
750-1000 4.2/8.2 20 20 20
