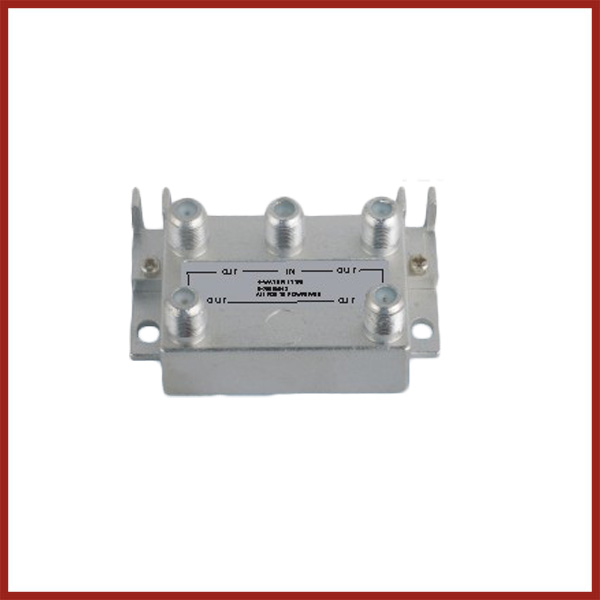

T204




Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB) Return Loss Out (Min.dB) Isolation Out-Out (Min.dB)
4-way Splitter 5-47 8.5 10.0 10.0 20.0
47-470 8.5 10.0 10.0 25.0
470-860 9.0 10.0 10.0 25.0
860-2050 11.0 10.0 10.0 20.0
2050-2150 11.5 10.0 10.0 20.0
2150-2300 12.0 10.0 10.0 20.0
2300-2500 13.5 10.0 10.0 20.0
