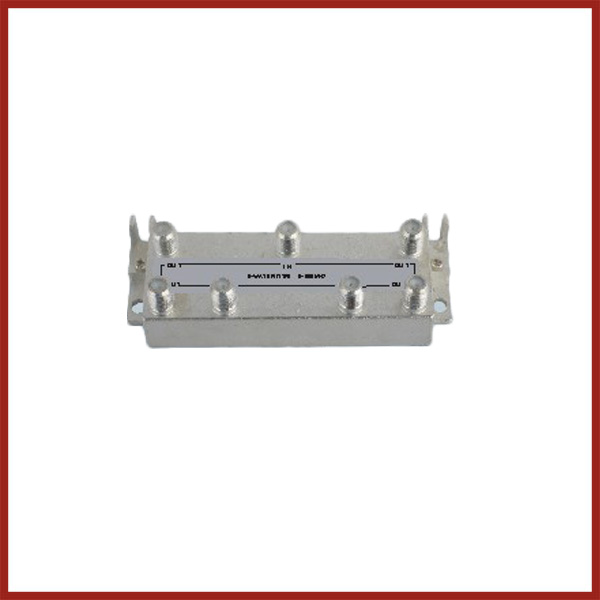

T106




Specification Frequency Range   (MHz) Insertion     In-Out       (dB) Isolation  (dB) Return     Loss       (dB)
6-way Splitter  5-10 9.2 19 18
10-40 9.7 20 18
40-470 10.2 19 18
470-860 10.7 20 18
860-1000 11.5 20 18
