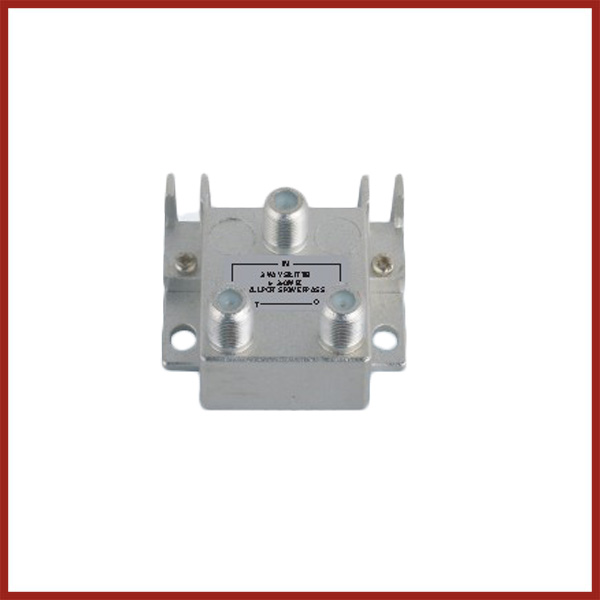

T202




Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB) Return Loss Out (Min.dB) Isolation Out-Out (Min.dB)
2-way Splitter 5-47 4.5 10.0 10.0 18.0
47-470 4.5 10.0 10.0 25.0
470-860 4.5 10.0 10.0 25.0
860-2050 5.5 10.0 10.0 25.0
2050-2150 5.8 10.0 10.0 22.0
2150-2300 6.0 10.0 10.0 22.0
2300-2500 6.5 10.0 10.0 20.0
