Home > Products > CATV/MATV/Satellite Splitter (Indoor) > "T"Type 5-1000/2500 MHz Splitter

Loading...

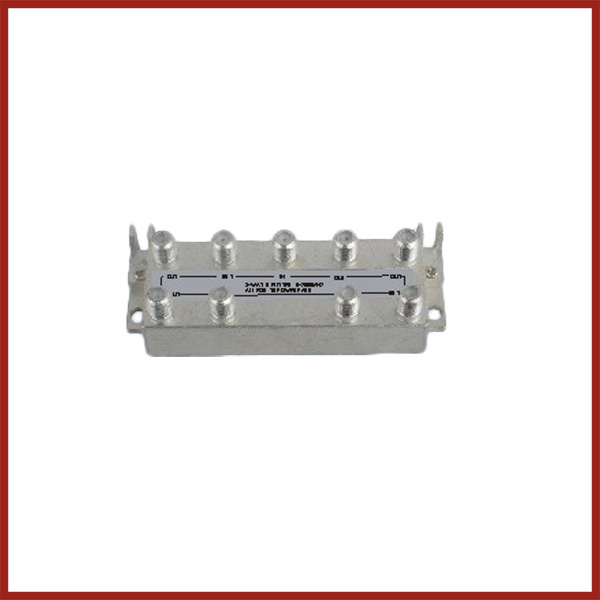

T208




Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB) Return Loss Out (Min.dB) Isolation Out-Out (Min.dB)
8-way Splitter 5-47 12.0 8.0 10.0 20.0
47-470 12.0 8.0 10.0 25.0
470-860 12.5 10.0 10.0 18.0
860-2050 16.5 10.0 10.0 18.0
2050-2150 17.0 10.0 10.0 18.0
2150-2300 18.0 10.0 10.0 18.0
2300-2500 19.0 10.0 10.0 18.0
