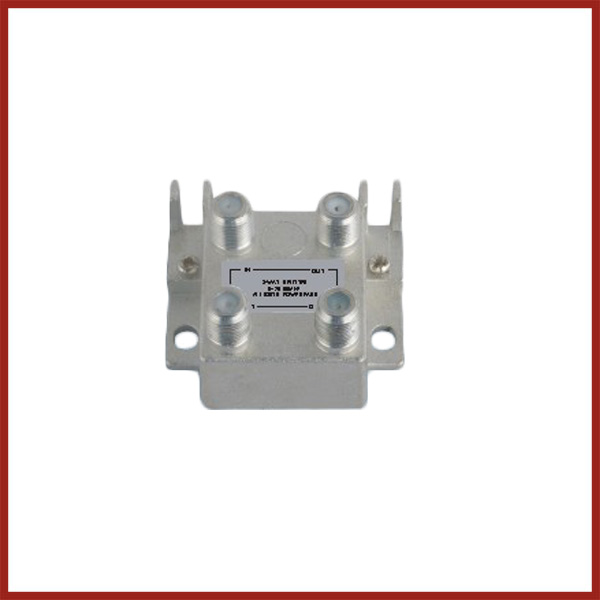

T203




Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB) Return Loss Out (Min.dB) Isolation Out-Out (Min.dB)
3-way Splitter 5-47 7.5 10.0 10.0 22.0
47-470 7.0 10.0 10.0 22.0
470-860 7.0 10.0 10.0 22.0
860-2050 9.5 10.0 10.0 22.0
2050-2150 10.0 10.0 10.0 22.0
2150-2300 11.0 10.0 10.0 22.0
2300-2500 12.5 10.0 10.0 20.0
