Home > Products > CATV/MATV/Satellite Splitter (Indoor) > "S"Type 5-1000/2500 MHz Splitter

Loading...

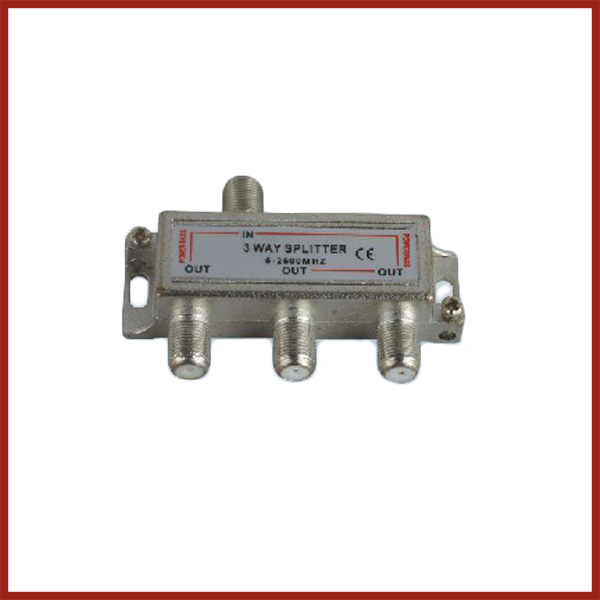

S203




Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB)

Return Loss Out

 (Min.dB)

Isolation Out-Out (Min.dB)
3-way Splitter 5-47 6.5 12 10 18
47-1000 7.5 12 10 20
1000-2050 10.0 12 10 20
2050-2150 11.5 12 10 20
2150-2300 11.5 12 10 20
2300-2500 14.0 12 10 20
