Home > Products > CATV/MATV/Satellite Splitter (Indoor) > "S"Type 5-1000/2500 MHz Splitter

Loading...

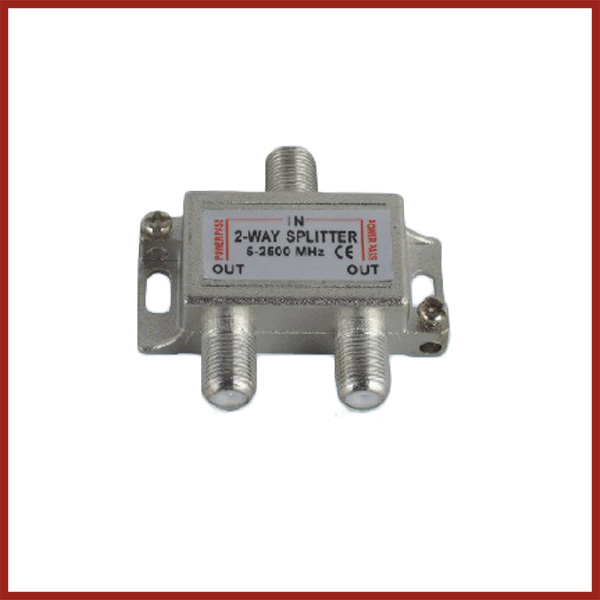

S202




Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB)

Return Loss Out

(Min.dB)

Isolation Out-Out (Min.dB)
2-way Splitter 5-47 4.5 12 13 15
47-1000 5.5 10 10 15
1000-2050 6.5 10 10 20
2050-2150 7.0 12 10 20
2150-2300 7.5 12 10 20
2300-2500 9.0 12 10 20
