Home > Products > CATV/MATV/Satellite Splitter (Indoor) > "S"Type 5-1000/2500 MHz Splitter

Loading...

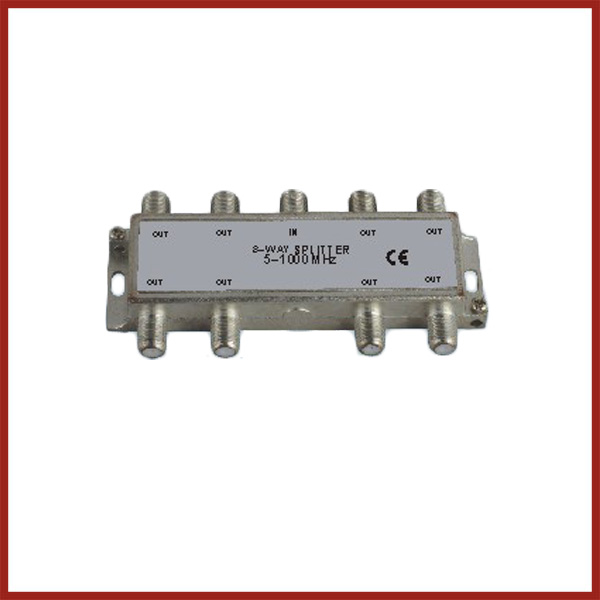

S108S


Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB) Return Loss Out (Min.dB) Isolation Out-Out (Min.dB)
8-way Splitter 5-47 10.5 20 20 21
47-470 11.0 20 20 21
470-750 12.0 20 20 21
750-1000 12.5 20 20 21
