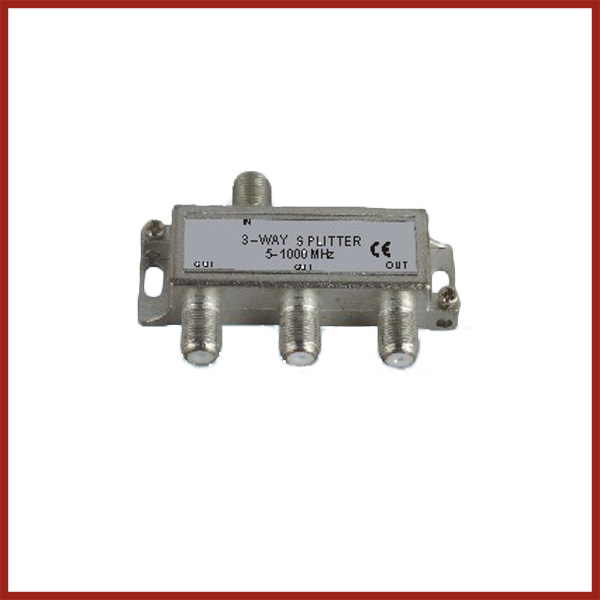

S103S




Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB) Return Loss Out (Min.dB) Isolation Out-Out (Min.dB)
3-way Splitter 5-47 3.7/7.2 20 20 23
47-470 4.0/7.5 20 20 23
470-750 4.1/7.8 20 20 23
750-1000 4.2/8.0 20 20 23
