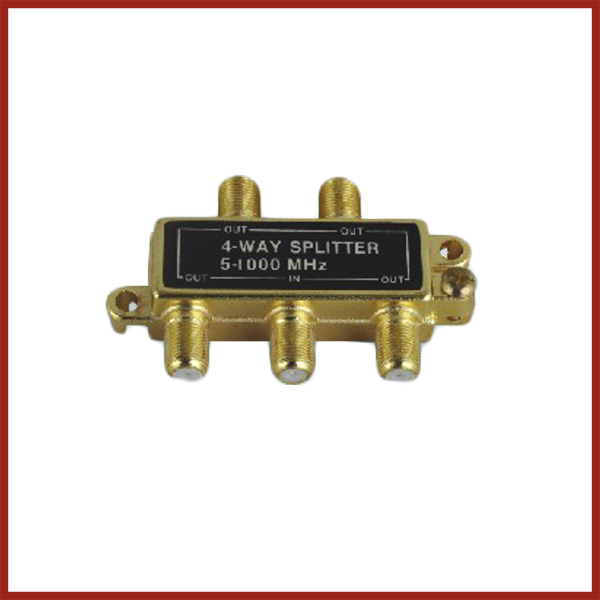

H104G




Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB) Return Loss Out (Min.dB) Isolation Out-Out (Min.dB)
4-way Splitter 5-47 6.8 18 18 22
47-470 7.0 20 20 25
470-750 7.5 20 20 23
750-1000 8.1 18 18 20
