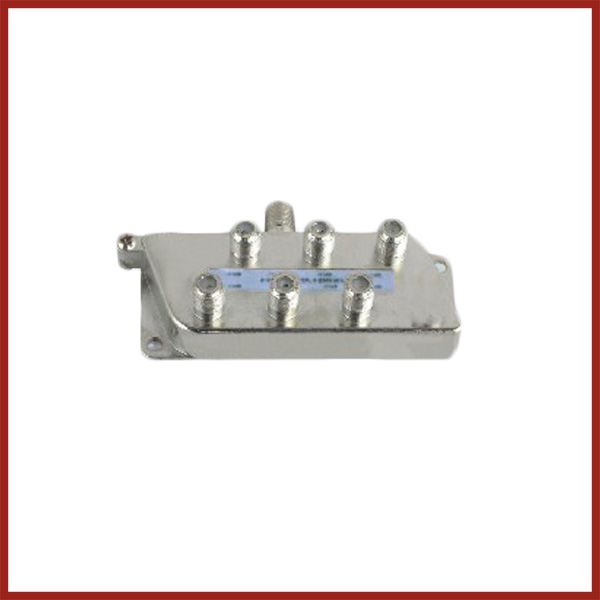

H106S




Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB) Return Loss Out (Min.dB) Isolation Out-Out (Min.dB)
6-way Splitter 5-47 9.2 18 18 25
47-470 10.5 20 20 22
470-750 10.5 20 20 22
750-1000 11.5 18 18 20
