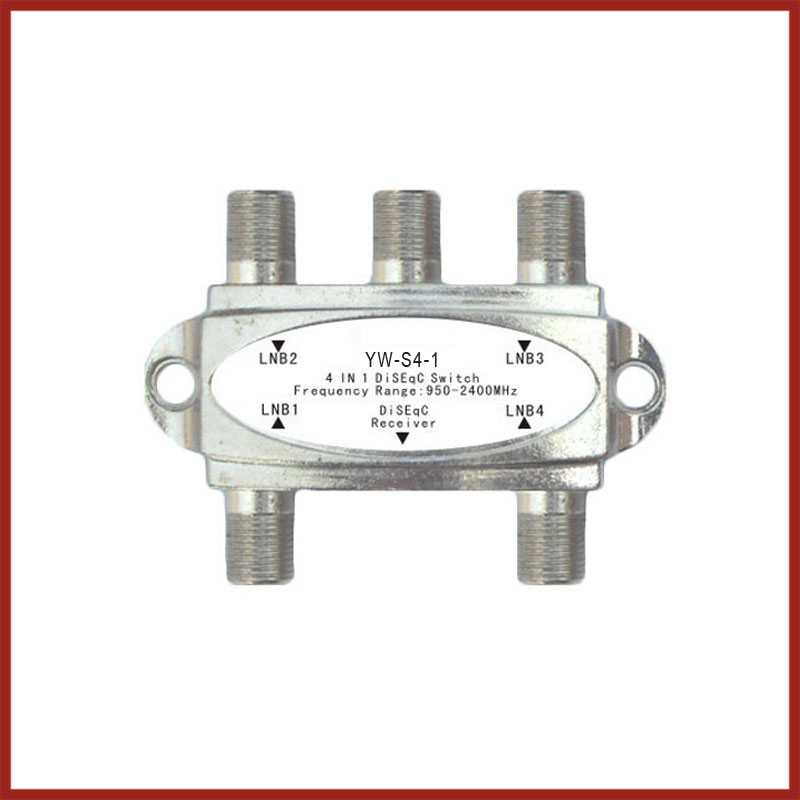

YW-S4-1
Specification:
Model YW-S4-1
Frequency(MHz) 950~2300
Insertion Loss (dB) ≤5
Switch Isolation(dB) ≥20
Max. DC Current To LNBs(mA) 500

Feature:
*Zinc die-cast housing, nickel-plated
*Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously
*Select one of four satellite signals through DiSEqC commands supplied from satellite receiver
*inputs selected by DiSEqC Command.
*Compact housing, SMD technology design
*All ports connectors: F-(f) 75Ω
Model:W-S4-1
DiSEqC Switch 4 in 1
