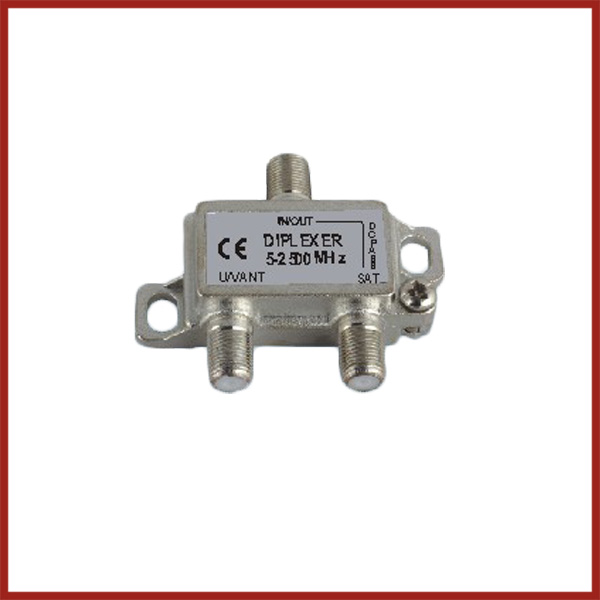

M102




Item Frequency Range(MHz)  Port M102
Insertion   Loss  5-40 ANT-IN-OUT ≤1.5
40-800 ≤1.5
800-860 ≤1.5
950 ≥40
950-2500 ≥40
950-1000 SAT-IN-OUT ≤2.0
1000-2050 ≤2.0
2050-2150 ≤2.0
2150-2500 ≤2.0
862 ≥40
5-862 ≥40
Return Loss 5-860 ANT ≥15
950-2050 ANT ≥12
2050-2500 ≥12
5-860 IN/OUT ≥15
950-1200 ≥12
