Home > Products > CATV/MATV/Satellite Splitter (Indoor) > "B"Type 5-1000/2500 MHz Splitter

Loading...

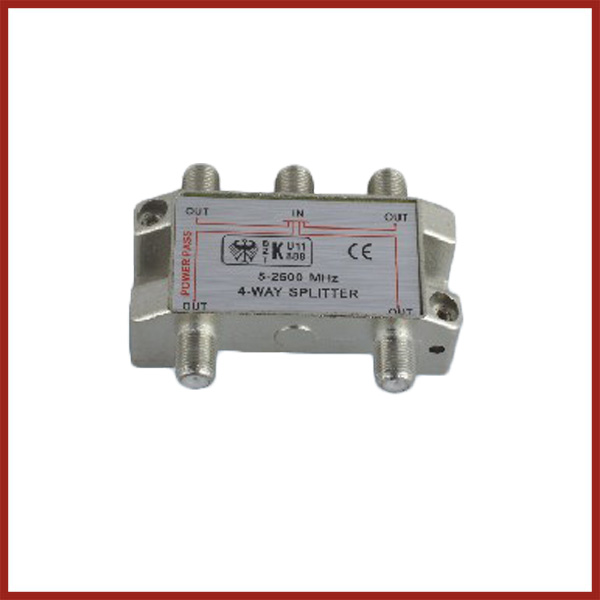

B204




Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB) Return Loss Out (Min.dB) Isolation Out-Out (Min.dB)
4-way Splitter 5-47 9.0 10 10 18
47-1000 11.0 11 15 20
1000-2050 12.0 12 12 18
2050-2150 12.5 12 10 18
2150-2300 13.5 10 10 18
2300-2500 14.0 10 10 18
