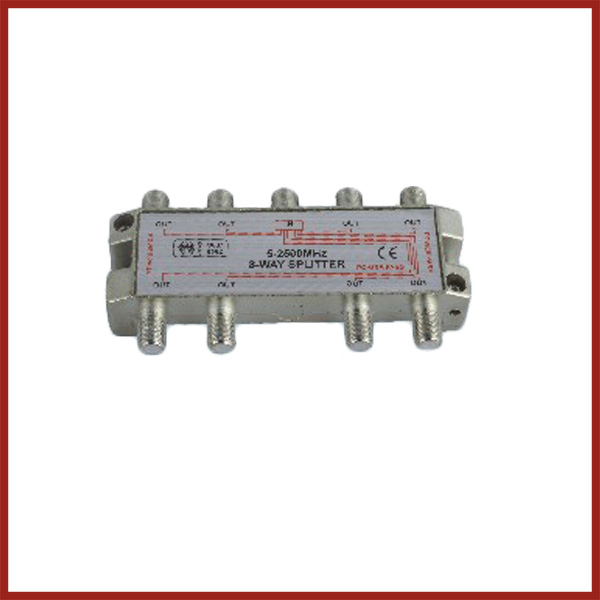

B208


Specification Frequency Range (MHz) Insertion Loss In-Out     (Min.dB) Return Loss In (Min.dB) Return Loss Out (Min.dB) Isolation Out-Out (Min.dB)
8-way Splitter 5-47 13.5 10 10 20
47-1000 15.0 10 10 18
1000-2050 17.5 10 10 18
2050-2150 18.0 10 10 18
2150-2300 18.0 10 10 18
2300-2500 18.5 10 10 18
